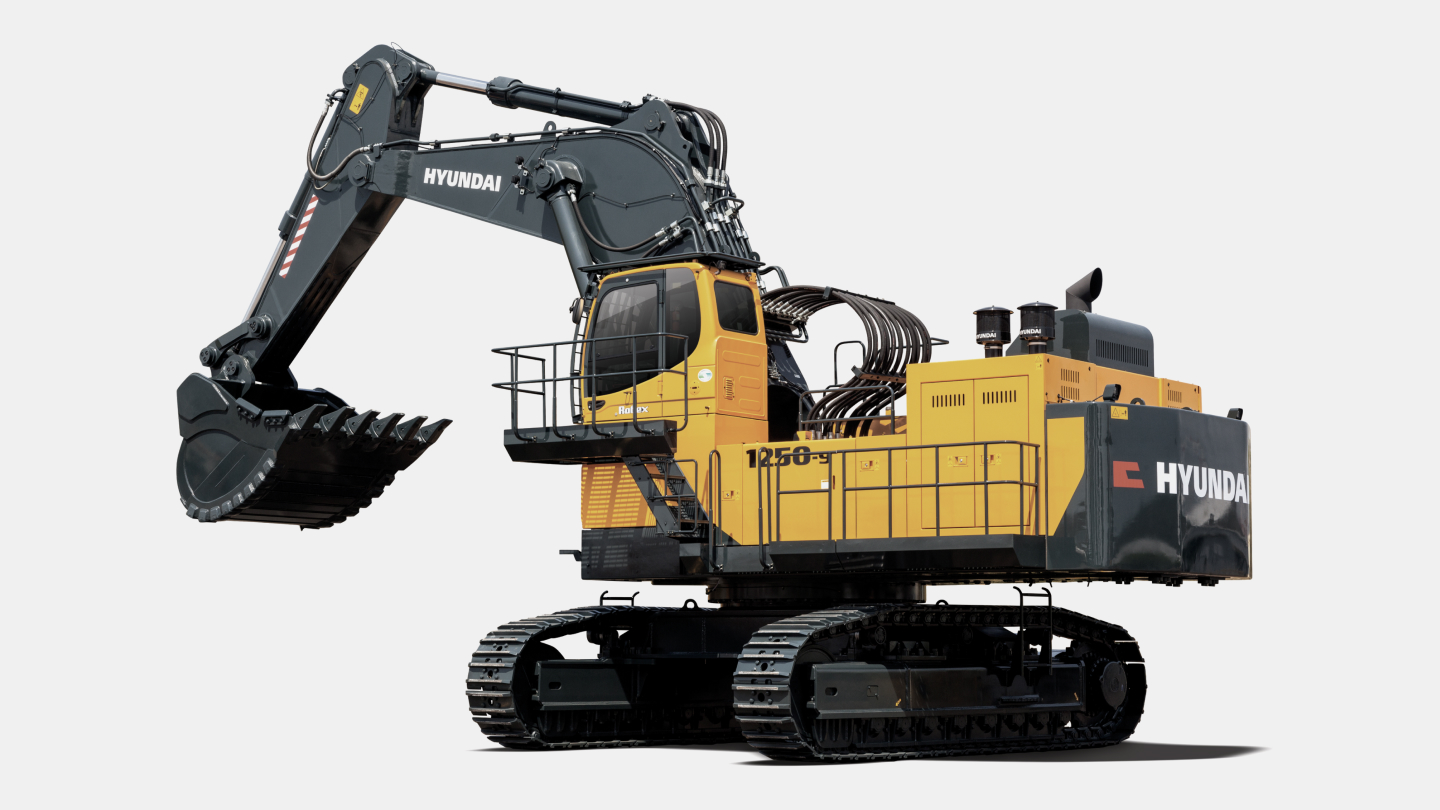

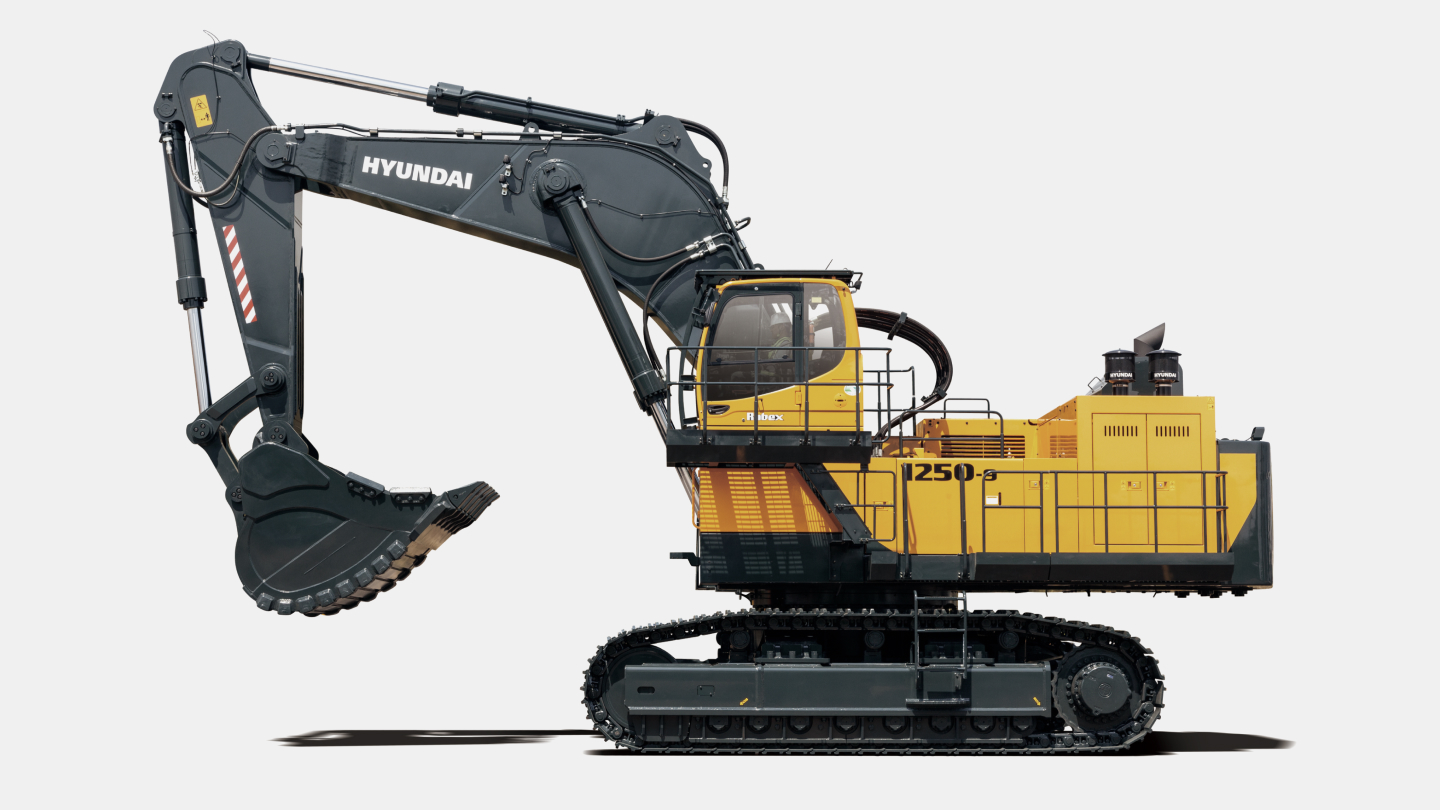

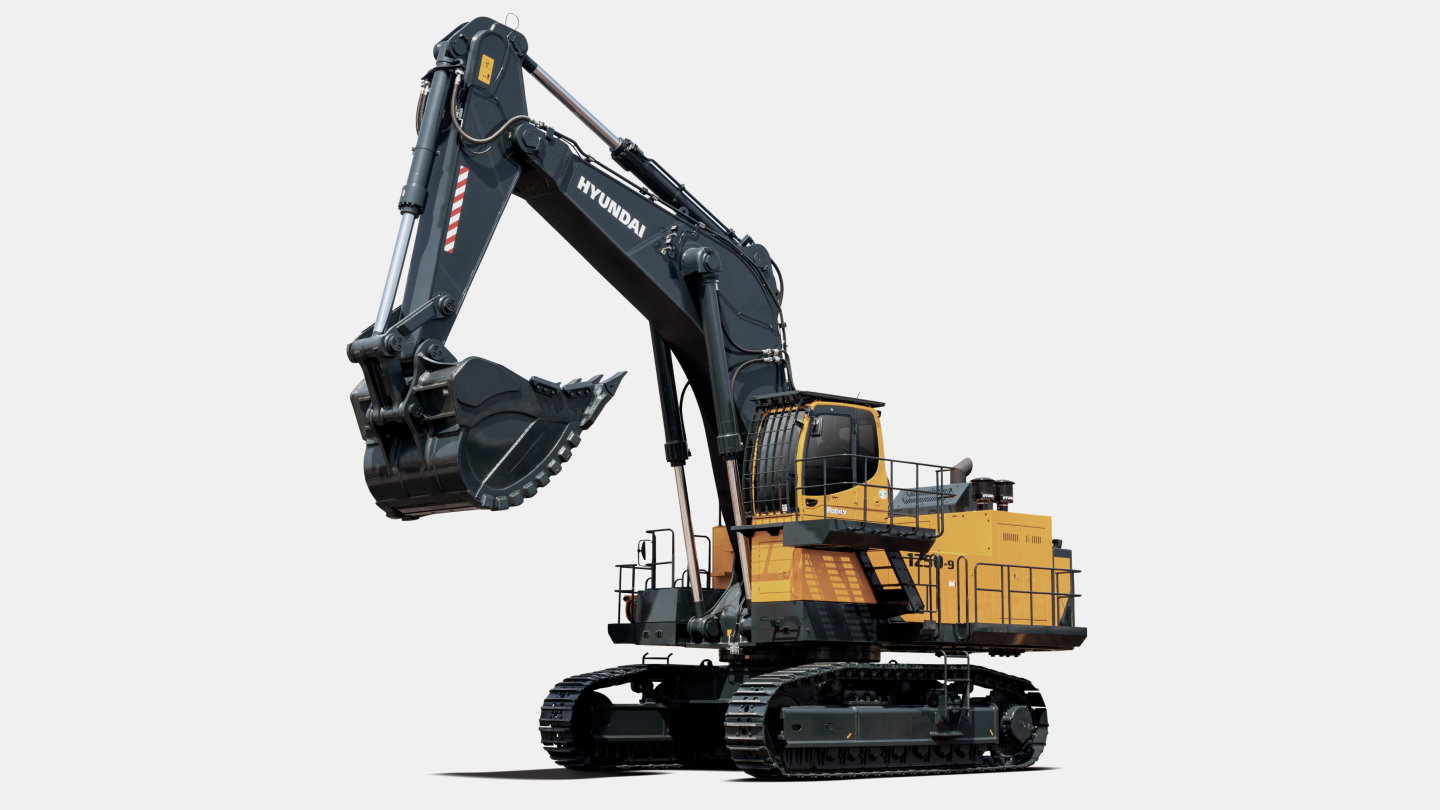

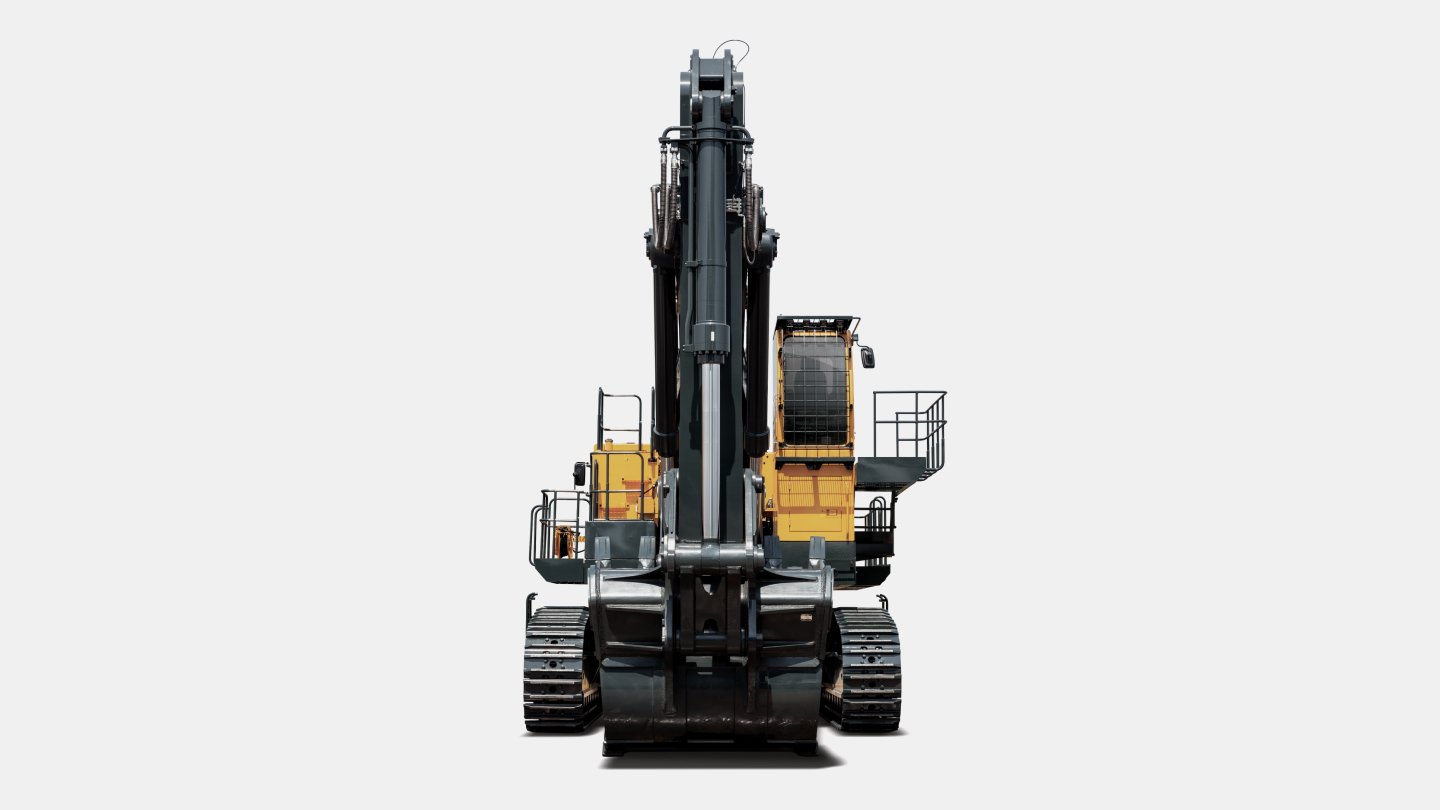

R1250-9

  • Type

    Large Excavators

  • Operating Weight

    118  ton

  • Emission

    ~TIER 2

  • Rated Power

    566  kW / 1,800 rpm

  • Catalog

3D View
This 3D image is for illustrative purposes only and may not represent the actual product.

Click on the screen to see the product in a 360° view.

Loading

Specifications

  • General

    Type

    Large Excavators

    Operating Weight

    118  ton

    Bucket Capacity

    6.7  m³

  • Engine

    Emission

    ~TIER 2

    Engine model

    CUMMINS QSK23

    Rated Power

    566  kW / 1,800 rpm

    Max. Torque

    354  kgf·m / 1,350 rpm

  • Hydraulic System

    Main Pumps Rated Flow

    3x531  ℓ/min

    Implement Circuit

    320  kgf/cm²

  • Tank Capacity

    Fuel Tank

    1,475  ℓ

    Hydraulic Tank

    670  ℓ

  • Performance

    Swing Speed

    5.6  rpm

    Travel Speed

    3.2  km/h

    Max. Traction Force

    70,200  kgf

    Max. Gradeability

    35  deg

    Bucket Digging Force (ISO)

    64,690  kgf

    Arm Digging Force (ISO)

    47,780  kgf

  • Dimensions

    Overall Length

    14,580  mm

    Overall Width

    5,560  mm

    Overall Height

    6,210  mm

    Tail Swing Radius

    4,865  mm

    Tumbler Distance

    5,010  mm

    Ground Clearance

    990  mm

  • Operating Range

    Boom Length

    7,550  mm

    Arm Length

    3,400  mm

    Max. Digging Reach

    13,760  mm

    Max. Digging Depth

    8,010  mm

    Max. Digging Height

    12,420  mm

    Max. Dumping Height

    7,790  mm

    Min. Swing Radius

    6,550  mm

- These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog. - The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
